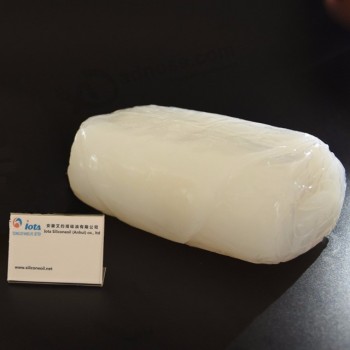

good electric conductive silicone rubber raw material
Purchase Qty / Preis:
Shanghai , China
Mitglied seit: 2014
Unternehmenstyp:
86-21-33888857
86-21-33888857
Produktbeschreibung
- place of Origin:
- china
- brand Name:
- iota
- model Number:
- 141-40 / 741-60* / 6145-40P*
- appearance:
- semitransparent / transparent
- tracking resistance:
- 1A4.5
- sensible set:
- 5.0%
- hardens:
- 30-70
- density:
- 1.10-1.53
- tensile strength:
- 4.0-11.0
- elongation:
- 160-800
- tear strength:
- 12-40
- MOQ:
- 200 Kg
- sample:
- free
- supply Ability:
- 1000 metric Ton/Metric tons per year
- packaging details
- 20kg,25kg,50kg,100kg drums or barrels, or packed according to customers requirements.
- port
- shanghai
online customization
good electric conductive silicone rubber raw material
stress control conductive adhesive
products feature
good conductive properties and processing performance
suitable for cold expansion
application
printer, copier insulating rubber roller
products feature
high resilience
Low compression set
excellent adhesion
specification | iota 141-40* | iota 141-50* | iota 141-60* | iota 741-40* | iota 741-50* | iota 741-60* |
appearance | black | |||||
resistance | 10³Ω | |||||
hardness(HA) | 40 | 51 | 58 | 40 | 50 | 60 |
density(g/cm³) | 1.12 | 1.13 | 1.19 | 1.12 | 1.13 | 1.20 |
tensile strength(M.pa) | 6.5 | 6.0 | 8.0 | 6.5 | 6.5 | 6.5 |
elongation (%) | 400 | 350 | 300 | 500 | 400 | 350 |
tear strength (N/mm) | 12 | 12 | 15 | 12 | 12 | 15 |
vulcanizing agent | 2,5-bis[tert-butylperoxy]-2,5-dimethylhexane | |||||
application
The cold shrink cable, 4G communication cable casing
specification | iota6145-40P* | iota6745-40* |
product feature | platinum sulfide extrusion, machining | |
sensible set % | 5.0 | 8.0 |
dielectric strength, MV/M | 24.0 | 24.0 |
volume resistivity, Ω.cm | 0.6x10^15 | - |
appearance | transparent | milk white |
hardens(HA) | 41 | 42 |
density(g/cm3) | 1.14 | 1.14 |
tensile strength(Mpa) | 9.0 | 8.0 |
elongation(%) | 800 | 550 |
tear strength(N/mm) | 40.0 C | 20.0 C |
vulcanizing agent | platinum vulcanizing agent | 2,4-dichlorobenzoyl peroxide |
notes:
- items containing "*" represent the secondary vulcanization data; others represent first vulcanization data; "Y" for the liquid glue
- hardness containing "C" represent ASKER C others represent shore A
- tear mark: A cut mouth with crescent type cutter testing; C - domestic orthogonal cutting test; Not marked for jisk type B
- passed ROHS, FDA, reach (SVHC) test; Do not contain heavy metal and Phthalates; meet the requirements of California's 65 proposal
packaging:
20kg,25kg,50kg,100kg drums or barrels, or packed according to customers requirements.
As a leading manufacturer in organic silicon industry, silicon-based technology and innovation area, iota provide the whole industry chain silicone performance solutions. We serve the market in various fields, covering textiles and leather, food and beverages, paints, oil and natural gas, cosmetics, electronics, aerospace, automotive, construction, medical care, casting, personal care, agriculture, and LED.
Q: Are you a manufactory or trade company?
A: We are a manufactory
Q: How long can I expect to get the sample?
A: 5-7 days under normal conditions.
Q: Do you provide free samples?
A: Yes, we can offer free sample, you just need to pay the shipping.
Q: How long is your delivery time?
A: We can deliver the goods within 7-20 days.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
